| Parts List (each station): | |||
| 1 oscilloscope (Tektronix TDS2012B) |
1 function generator (BK Precision 4011A) |
Oscilloscope and function generator must be plugged into the same electrical outlet. Otherwise, there are grounding loop problems. | |
| 1 speaker, with patch wires if not on speaker | 1 rod & clamp assembly on tripod to hold sound level meter | 1 sound level meter (Radio Shack) |
1 amplifier (Radio Shack, either brown or black model) |
| 1 BNC cable | 1 BNC Tee | 3 BNC to RCA cables | 1 BNC cable to banana plug adapter (kind with no red on it) |
|

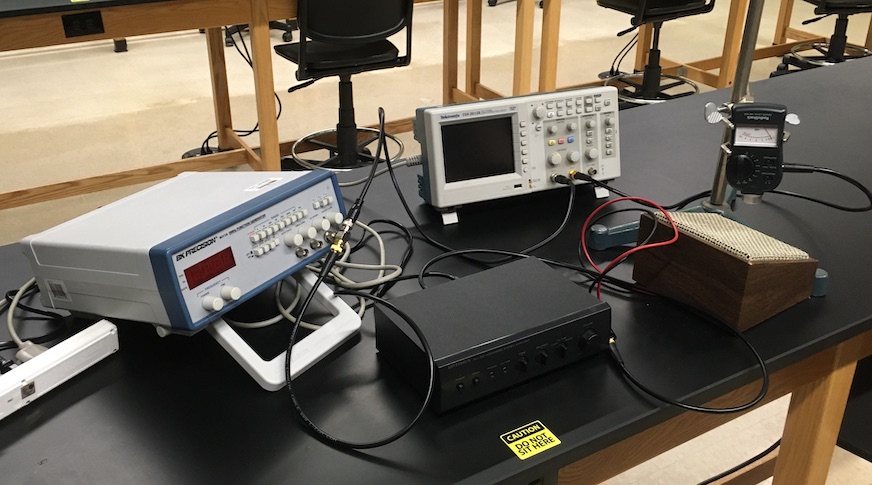

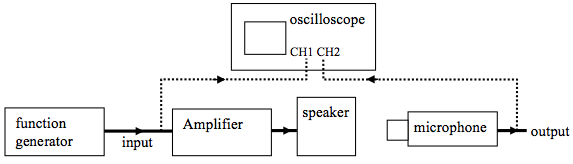

For this lab, equipment needs to be assembled before students arrive. Wiring diagram:
|
|||
