Table of Knot Mosaics – Mosaic Number 6 or Less

Return to Knot Mosaic Space
Crossing number 10 or less
Mosaic number 5 or less
Mosaic number 6 or less
Mosaic number 7 or less (Coming soon)

Click mosaic for larger view.

Curved lines on a mint green background — 6₃

Curved lines on orange background — 9₁₀ (more)

Curved lines on purple background — 9₁₉ (more)

curved lines on a salmon colored background — 10₆₁ (more)

curved lines on a yellow background — 10₆₃ (more)

^*These knots are listed as 10₁₆₂‑10₁₆₆ in Rolfsen due to the Perko Pair.

When listing prime knots with crossing number 11 or more, we use the Dowker-Thistlethwaite name of the knot. See KnotInfo for more information.

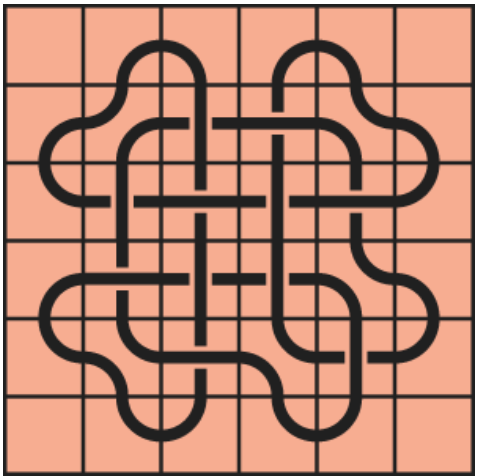

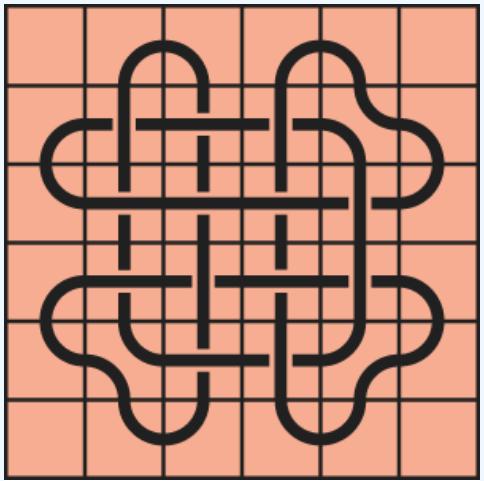

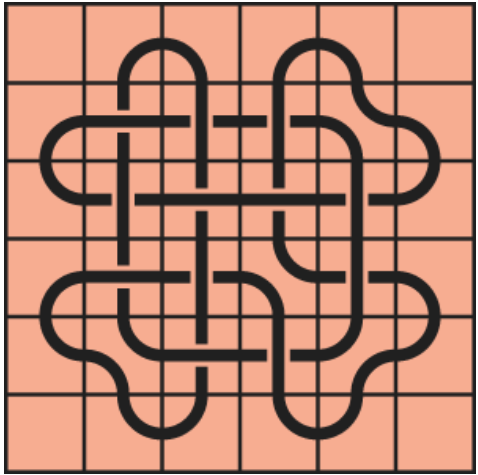

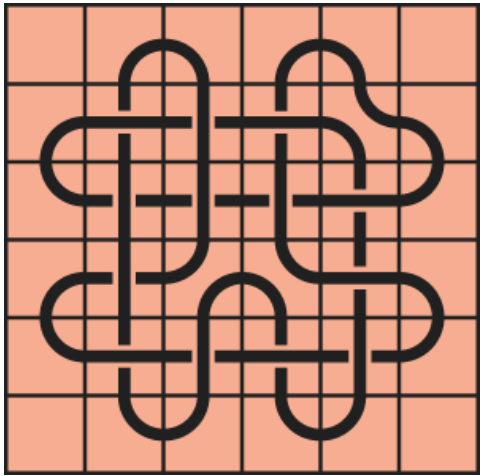

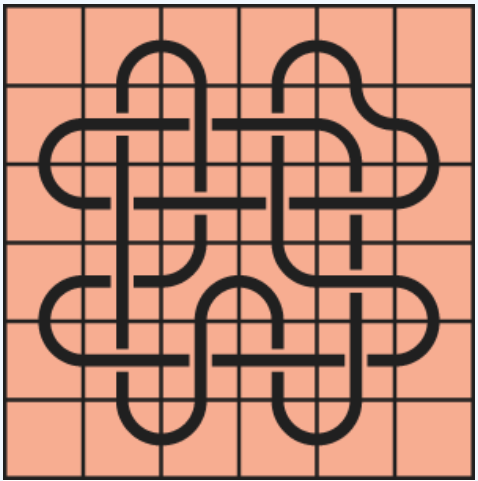

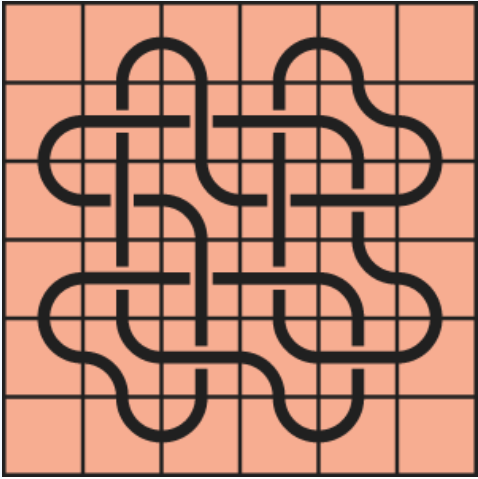

All knots with mosaic number 6 and crossing number 11 are given here. None of these have tile number 32.

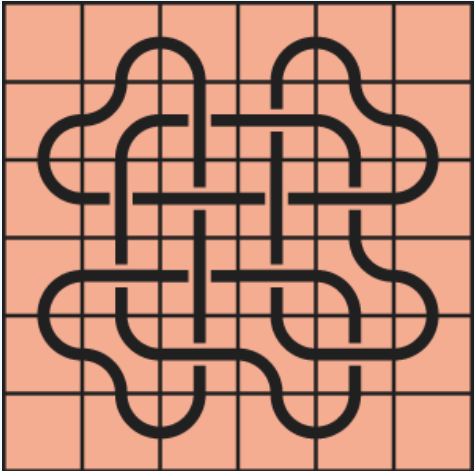

Curved lines on a red background — 11a₄₃
(more)

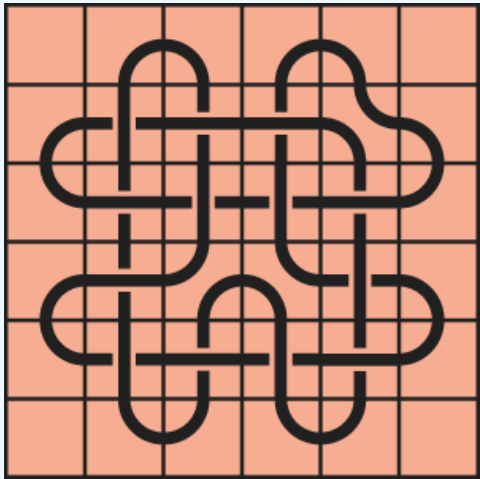

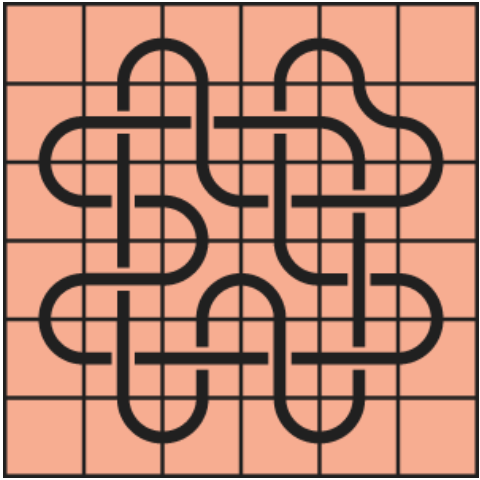

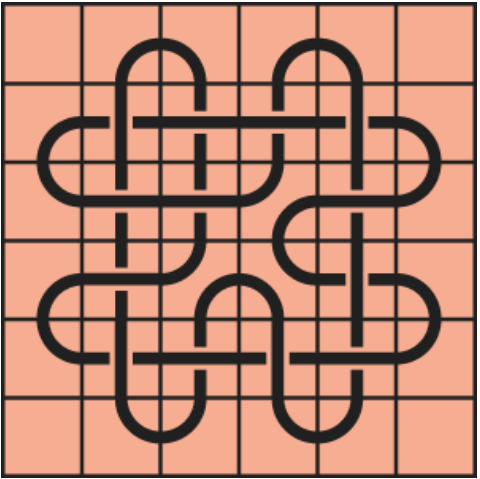

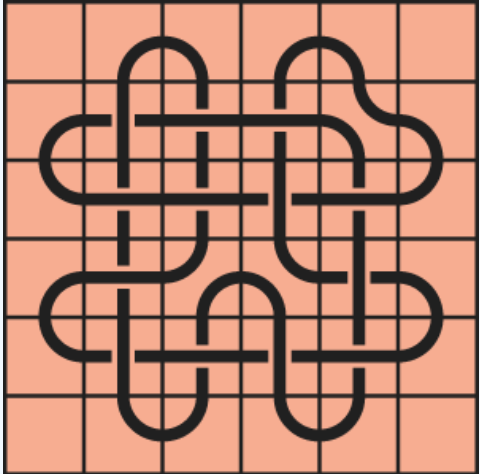

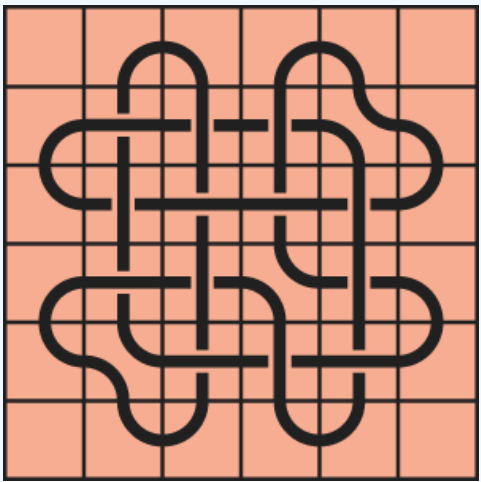

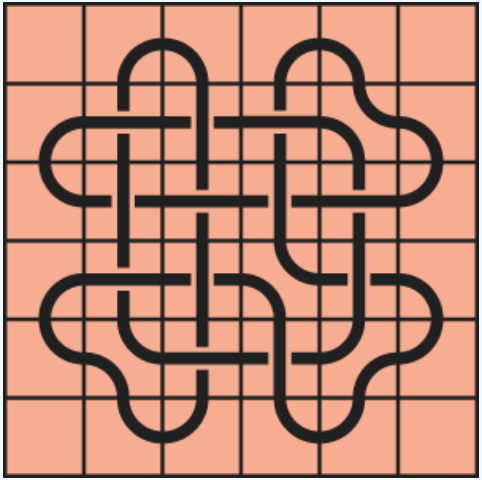

All knots with mosaic number 6 and crossing number 12 are given here. None of these have tile number realized.

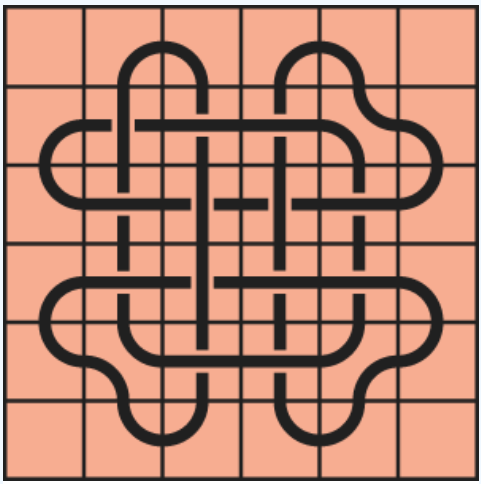

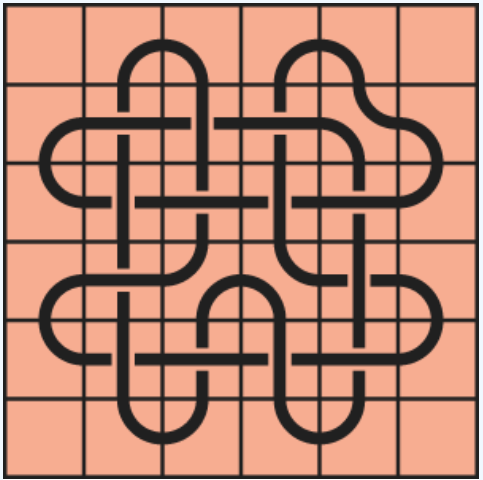

All knots with mosaic number 6 and crossing number 13 are given here. Some of these have tile number 32 realized in the given mosaic.

[Back to Top]

References:

Heap, A.; Knowles, D. Tile Number and Space-Efficient Knot Mosaics; J. Knot Theory Ramif. 2018, 27.
Heap, A.; Knowles, D. Space-Efficient Knot Mosaics for Prime Knots with Mosaic Number 6; Involve 2019, 12.
Kuriya, T.; Shehab, O. The Lomonaco–Kauffman Conjecture; J. Knot Theory Ramif. 2014, 23.
Lee, H.; Ludwig, L.; Paat, J.; Peiffer, A. Knot Mosaic Tabulation; Involve 2018, 11.
Lomonaco, S.J.; Kauffman, L.H. Quantum Knots and Mosaics; Quantum Inf. Process. 2008, 7, 85–115.
